Guotai bubble film extruder is used to produce high-quality polyethylene bubble film, which is a widely used packaging material known for its versatility and protection. This machine is made of high-quality polyethylene resin, and the products produced are not only packaging materials with wide applicability, but also the preferred cushioning and protection for various products.
|
Item |
Details |
|
Raw Material |
LDPE / LLDPE / Recycled Material |
|
Maximum width (mm) |
2530 |
|
Effective width (mm) |
2500 |
|
Speed (m/hr) |
800-2400 |
|
Production Capacity (kg) |
80-280 |
|
Range of film thickness (g/m2) |
25-300 |
|
Screw diameter (mm) |
65-65 |
|
Screw length diameter ratio |
32:1 |
|
Temperature Control Region |
16 |
|
Power of main motor |
30KW+22KW |
|
Power of vacuum pump |
3KW |
|
Maximum rewinding diameter |
1500mm (Can be customized upon requested) |
|
Power supply (volt) |
380V,50HZ,3 PHASES (Can be customized for different countries) |
|
Total Power (KW) |
212 |
|
Heating Power (KW) |
122 |
|
Effective Power (KW) |
63 |
|
Weight(kg) |
10700 |

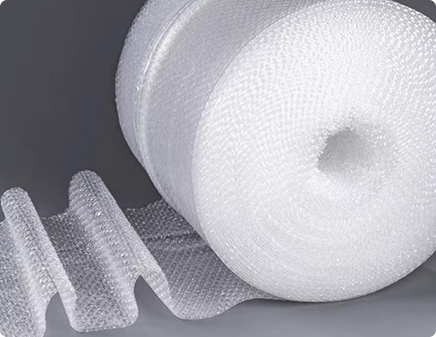

The central layer of the bubble film is filled with air, making it lightweight but with significant elasticity. Strong impact resistance and wear resistance.
The product performance of Cathay machines is stable and reliable, and user operation is simple. In addition, we provide free technical guidance, on-site installation and machine setup services, as well as a one-year warranty period for the machines, which makes customers from around the world highly satisfied with us
