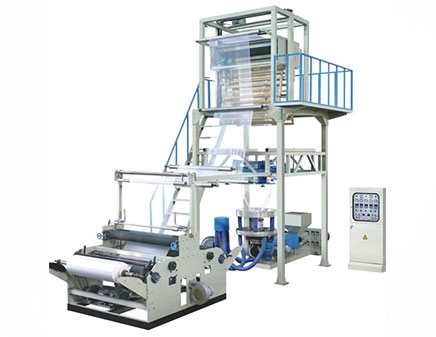

The GUOTAI film blowing machine has introduced innovative domestic technology, making its service life far exceed the standard screw of traditional film blowing machines, reaching 3 to 5 times the original. The application of this technology not only enables the machine to be used for a longer period of time, but also ensures that it can continuously and stably produce high-quality thin film products during the production process.
| Model | 45/45-700 | 50/50-900 | 55/55-1200 |
| Width | 300-550mm | 400-800mm | 600-1000mm |
| Thickness | HDPE:0.006-0.08mm LDPE:0.02-0.12mm | ||
| Maximum output | 30-85 kg/h | 30-140 kg/h | 50-100 kg/h |
| Change according to different widths, film thicknesses, mold sizes, and raw material characteristics | |||
| Raw material | HDPE/MDPE/LDPE/LLDPE/CACO3/Recycling | ||
| Screw diameter | Φ45*2 | Φ50*2 | Φ55*2 |
| Gearbox | 146 # | 173 # | 180 # |
| Main motor | 15KW * 2 | 18.5KW * 2 | 22KW * 2 |
| Mold diameter | Φ80/120mm | Φ100/150mm | Φ150/220mm |
1.High output speed:
Modern blow molding machines adopt advanced technology, which can achieve high-speed production while ensuring film quality, greatly improving production efficiency.
2.Energy efficiency:
By optimizing heating and cooling systems, energy consumption is reduced, making the production process more energy-efficient.
3.High degree of automation:
Many blow molding machines are equipped with advanced control systems, achieving highly automated production processes, reducing manpower
4.requirements, and improving production efficiency and stability.
Multifunctional integration:
Some blow molding machines integrate multiple functions such as production and cutting, making them versatile and reducing the demand for additional equipment and production costs.
